Product Parameters

Electric Two-wheeler70.4V 72Ah LFPCCC / EECABS Disc Brakes

110km/h

Max speed

130km

Max range

11kW

Max power

240N.m

Wheel torque

CertificationCCC / EEC

Overall size (L x W x H)1908 x 1214 x 803 mm

Motor typePermanent magnet synchronous mid-mounted motor

Max power11 kW

Max speed110 km/h

Max range130 km @ 25 km/h / 85 km @ 50 km/h

Battery voltage / capacity70.4 V / 72 Ah

Battery chemistryLFP (lithium iron phosphate)

Brake systemDual-channel ABS disc brakes

Tyres (front / rear)100/80-14

Vehicle weight145 kg

Waterproof levelIP65

Source: Zenius Electric Vehicle Product Catalog. Specifications are indicative and may vary by configuration – contact us for the confirmed build sheet and batch test report.

Request a Quote

Description

FAQs

Request a Quote

Product Details

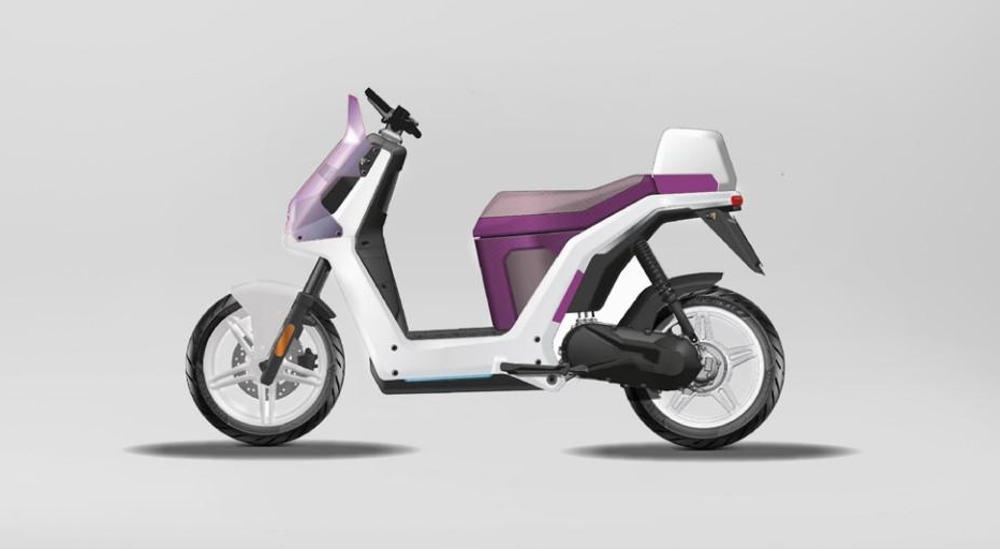

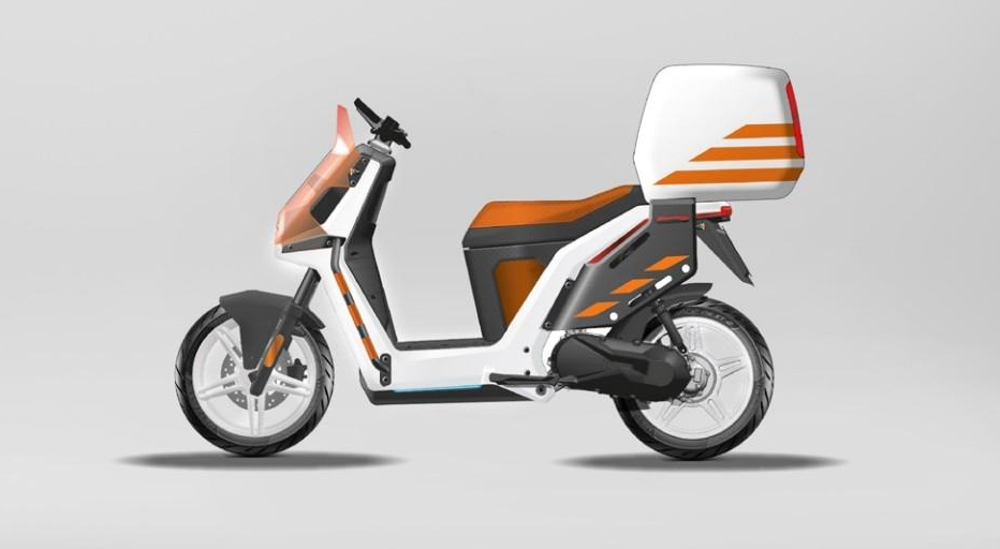

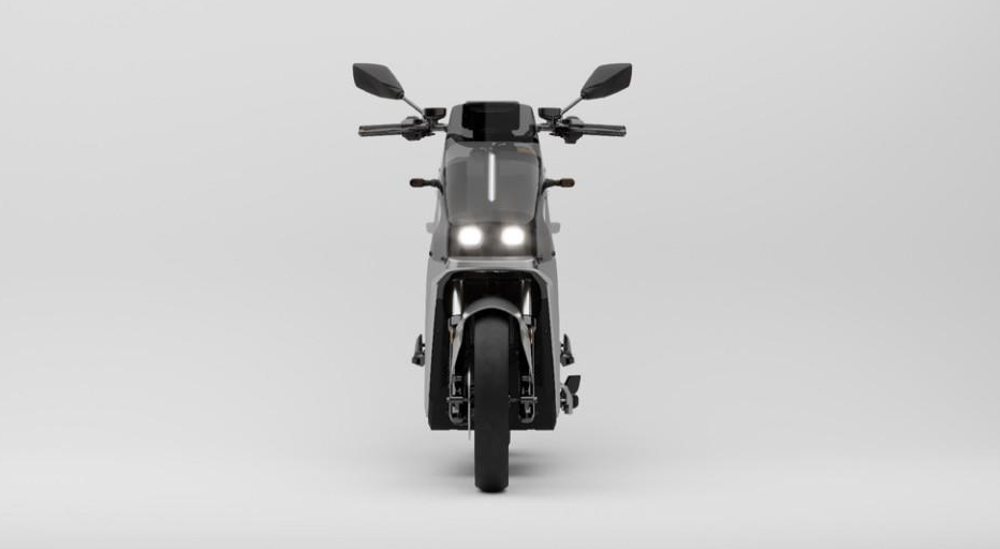

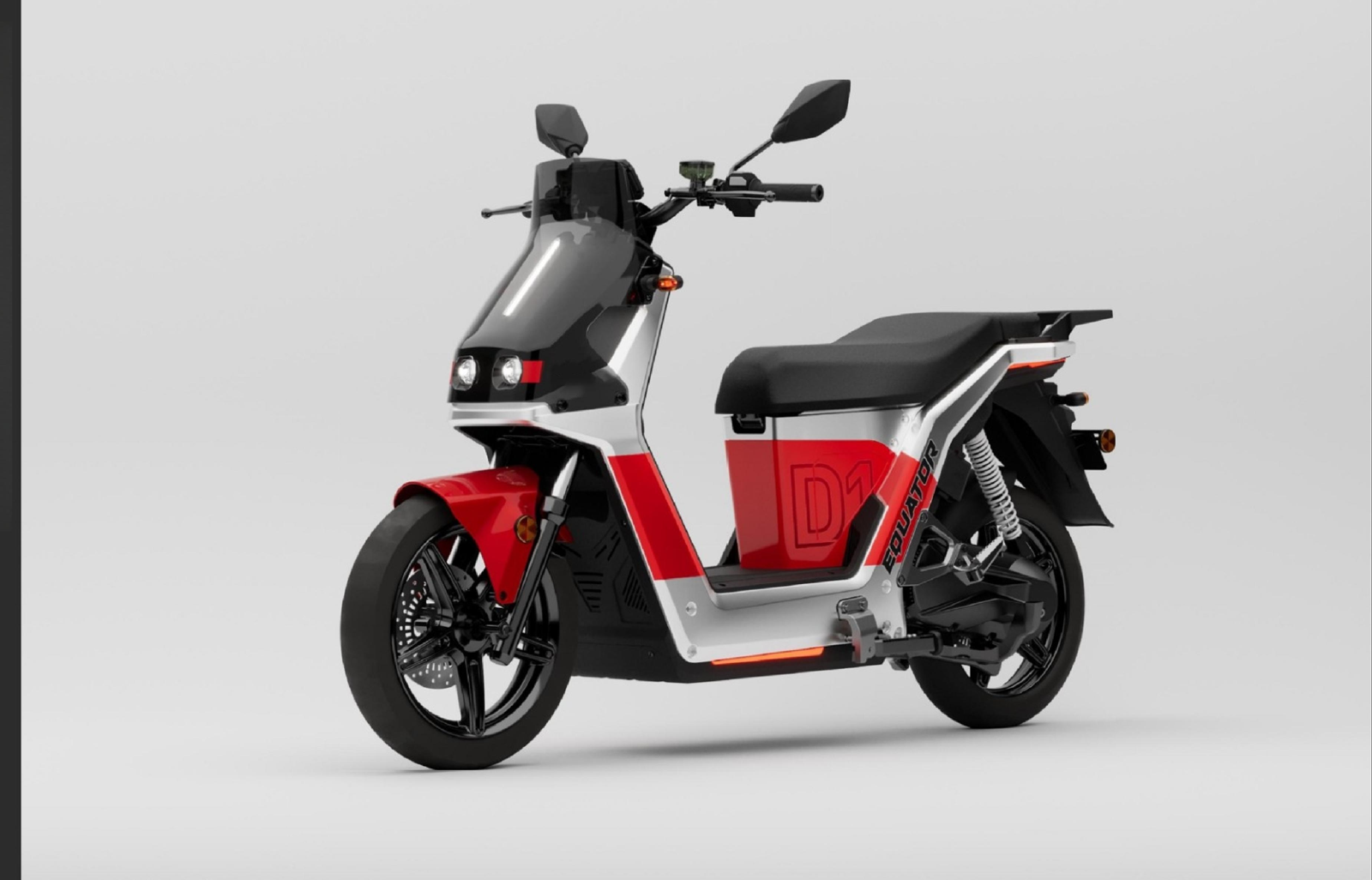

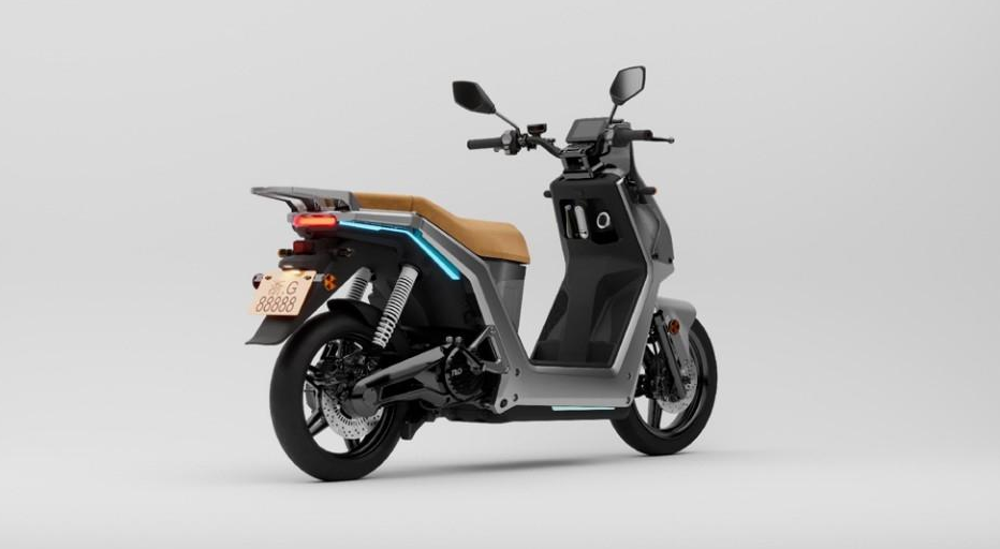

Zenius EQUATOR Electric Scooter

The Zenius EQUATOR is a highway-capable electric scooter built around a permanent-magnet synchronous mid-mounted motor and a 70.4 V 72 Ah LFP battery pack. It reaches 110 km/h and up to 130 km of range at 25 km/h, with 11 kW of peak power and 240 N.m of wheel torque. An aluminium-alloy frame, dual-channel ABS disc brakes, IP65 sealing and CCC/EEC certification make it suitable for both domestic and export markets.

Key Features

Mid-mounted PMSM drive – permanent magnet synchronous motor with CVT + gear transmission, 11 kW peak power, 240 N.m wheel torque.
70.4 V 72 Ah LFP battery – lithium iron phosphate chemistry, IP65, 7 h home charge or 2 h on-board Type 2 fast charge (EQUATOR-PLUS).
110 km/h top speed, 130 km range – 85 km at 50 km/h; 30 deg climbing ability at 30 km/h.
Safety – dual-channel ABS disc brakes, aluminium-alloy wheels, upright dual-pressure damping.
Smart features (EQUATOR-PLUS) – TFT display, App, IOT, front / rear camera, keyless NFC unlock.
Export ready – CCC and EEC certified, carton & wooden-case packaging.

Specifications

Parameter	Value
Model	EQUATOR
Type	Electric two-wheel scooter (L1e / moped class)
Certification	CCC / EEC
Overall size (L x W x H)	1908 x 1214 x 803 mm
Wheelbase	1380 mm
Seat height	763 mm
Ground clearance	146 mm
Vehicle weight	145 kg
Max load	150 kg
Frame	Aluminium alloy
Motor type	Permanent magnet synchronous mid-mounted motor
Max power	11 kW
Wheel torque	240 N.m
Gear ratio	7.65
Transmission	CVT + gear
Max speed	110 km/h
Max range	130 km @ 25 km/h / 85 km @ 50 km/h
Climbing ability	30 deg @ 30 km/h
Battery chemistry	LFP (lithium iron phosphate)
Battery voltage / capacity	70.4 V / 72 Ah
Battery size	518 x 334 x 151.5 mm
Cell type	Fixed square-case LFP cell
Charger method	Home charger (EQUATOR) / On-board Type 2 fast charger (EQUATOR-PLUS)
Charger full / rated voltage	80.3 V (EQUATOR) / 80.3 V-70.4 V (EQUATOR-PLUS)
Charger current	10 A (EQUATOR) / 25 A (EQUATOR-PLUS)
Charging time (0-80%)	7 h (EQUATOR) / 2 h (EQUATOR-PLUS)
Controller cooling	Air cooling
Display	LCD (EQUATOR) / TFT (EQUATOR-PLUS)
Communication protocol	CANbus
Brake system	Dual-channel ABS disc brakes
Tyres (front / rear)	100/80-14
Wheel material	Aluminium alloy
Damping	Upright dual-pressure damping shock absorption
Weight distribution	Front 52% / Rear 48%
Waterproof level	IP65
Unlock	Key / NFC / remote control / App
Drive mode	ECO / Normal / Sport / Racing / Home / Moving
App / IOT	Optional (EQUATOR-PLUS)
Front / rear camera	Optional (EQUATOR-PLUS)
USB charging	Yes
Packaging	Carton & wooden case

Notes

Range figures are measured at the stated constant speeds on a test cycle and vary with load, terrain, temperature and riding style. EQUATOR-PLUS adds a TFT display, on-board Type 2 fast charger, App / IOT connectivity and front / rear cameras. Specifications are taken from the Zenius Electric Vehicle Product Catalog and are subject to change by configuration – please request the confirmed specification sheet before ordering.

Request Quote

For pricing, lead time, colour options and OEM / ODM configurations, contact us:

Email: sales@dididede.com
Phone / WhatsApp: +86 176-1445-2002
WeChat: shuna0305

FAQs

Are these cells original factory genuine products?

We have established stable supply channels with first-tier cell manufacturers, including Farasis. All supplied cells are original factory genuine products, shipped in original packaging, with batch-level traceability information available.

What is the minimum order quantity (MOQ)?

MOQ depends on the model and on current inventory. We support sample orders and small-batch trial orders, with tiered pricing for bulk purchases. Please fill in the model and required quantity in the "Request a Quote" form below and we will come back with a corresponding solution and price.

Do you support capacity grouping and PACK customization?

Yes. We can perform capacity, internal resistance and voltage grouping to customer requirements, and provide PACK structural design, BMS integration, connection processes (laser welding / ultrasonic welding) and thermal management solutions.

What is the delivery lead time and how are cells shipped?

Lead time is confirmed against model inventory and production scheduling, and the specific date is included in the quote. Cells are Class 9 dangerous goods and are shipped through qualified hazardous-goods logistics channels; UN38.3, MSDS and transport identification reports are available.

What certifications and test documents can you provide?

On request we can provide MSDS, UN38.3 test reports, transport identification reports, factory QC reports and batch consistency data. The exact document set depends on the model and the order requirements.

What are the warranty and after-sales policies?

Warranty scope and duration follow the original manufacturer's policy and the signed contract. If anything is abnormal on arrival or in use, please keep the original packaging and batch information and contact our technical support team.
